CLC 150E Enclosed PTZ Camera Lift – Ceiling Mounted with 4 meter drop
Tono CLC 150E PTZ camera lift with a 4-meter drop. Designed for high ceilings, quiet operation and a clean concealed finish.
Description
For High Ceilings. With High Expectations.

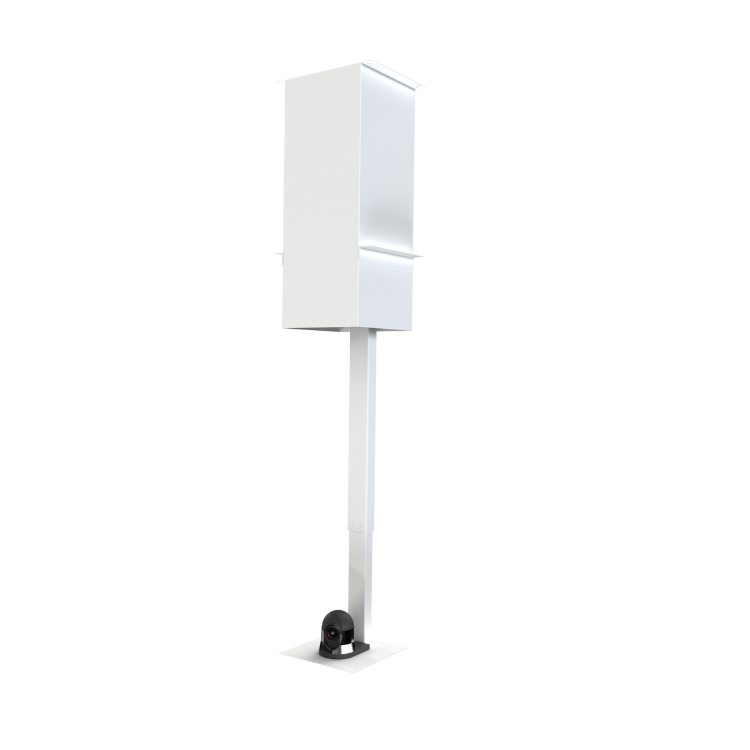

The Tono CLC 150E is a ceiling-mounted motorized lift built to accommodate a single PTZ camera in large-format spaces with high ceilings. With an impressive 4-meter vertical drop, it delivers smooth, precise camera deployment while staying fully hidden when not in use. Ideal for auditoriums, event halls, conference centers, or houses of worship, this lift combines performance with clean architectural integration.
Built for the Big Stage
Designed to operate seamlessly in venues with elevated ceiling heights, the CLC 150E ensures your camera is always at the optimal position—without compromising sightlines or design. The enclosed ceiling-mounted housing allows the lift to vanish completely when retracted, preserving a polished, professional interior.
Precision Control Meets Quiet Power
Engineered with a screw-driven motor for maximum stability, the lift lowers and raises your PTZ camera with silent, vibration-free movement. Its <45 dB operation makes it perfect for noise-sensitive environments such as live broadcast rooms and lecture halls. Easily controlled via RF remote, or contact closure, it integrates effortlessly with your AV system.
Technical Highlights
-
Ceiling-mounted lift for one PTZ camera
-
Drop travel: 4150 mm
-

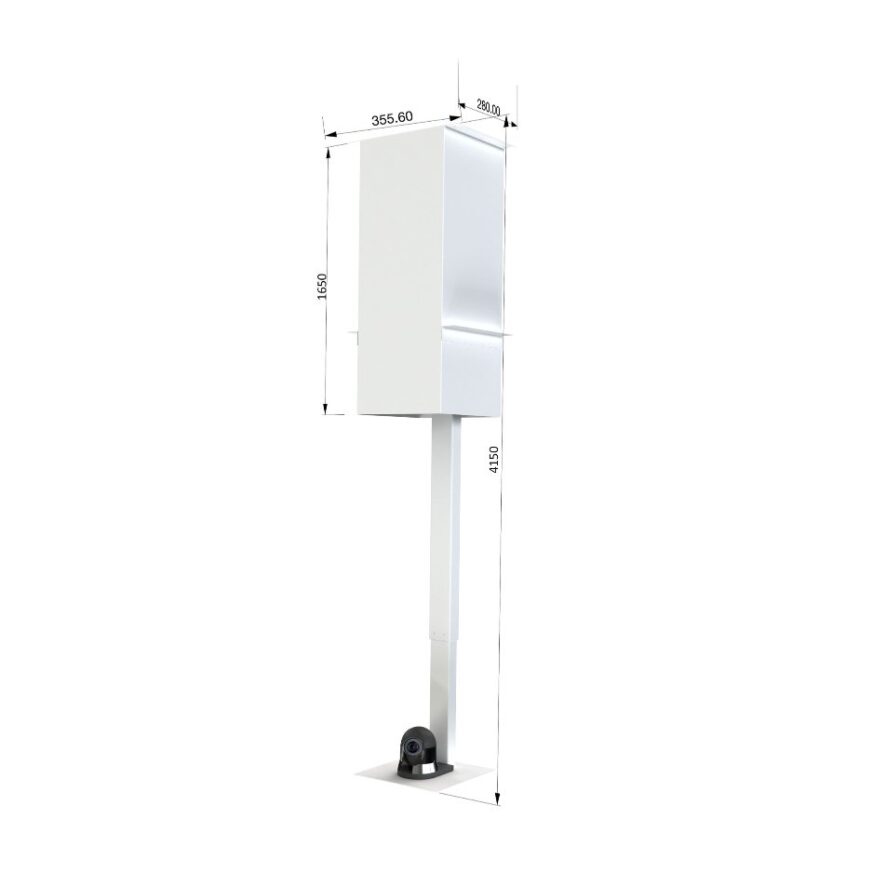

Enclosure dimensions: 355.6mm (W) x 280mm (D) x 1650mm (H)
-
Silent motorized operation under 45 dB
-
Supports PTZ cameras up to 40 kgs
-
Control via RF remote and contact closure
-
Sleek enclosure for concealed installation
Features
- Ceiling-mounted motorized lift for a single PTZ camera.
- Offers an extended 4150 mm drop—ideal for high ceilings.
- Fully enclosed design for a seamless, concealed ceiling finish.
- Smooth, screw-driven motor ensures vibration-free precision.
- Ultra-quiet operation under 45 dB—perfect for sensitive environments.
- Compatible with leading PTZ camera models up to 40 kg.
- Control options include RF remote and contact closure.
- Integrates easily into existing AV and automation systems.
- Ideal for auditoriums, lecture halls, houses of worship, and broadcast studios.
- Engineered for durability, stability, and long-term performance.
