Tono Pro X42 A8k – 8K60 4×2 HDMI Matrix Switcher
Tono Pro X42 A8k – 8K60 4×2 HDMI Matrix Switcher
Experience stunning 8K visuals and immersive audio with the Tono Pro X42 A8k HDMI matrix switcher. Connect 4 sources to 2 displays with eARC support and easy control options.
Description
Crystal-Clear 8K Resolution for Immersive Viewing
Get ready for jaw-dropping visuals with the Tono X42 A8k. It supports up to 8K@60Hz 4:2:0 resolution, bringing your content to life. The detail & clarity are incredible. Whether you’re into movies, games, or presentations, the 8K capability makes sure you always get the best picture.
Versatile Connectivity for Multiple Devices
Hook up to four HDMI sources to two displays at once with this 4×2 matrix switcher. It’s a breeze switching between your gaming console, streaming device, computer, and cable box without constantly swapping cables. The Tono Pro X42 A8k’s design is flexible. Perfect for home theaters, conference rooms, and classrooms.
Enhanced Audio Features for Superior Sound
Enjoy amazing audio quality with support for formats like Dolby Atmos & DTS:X. The eARC function on INPUTS 1 and OUT 1 ports lets you enjoy high-quality sound between devices. Thanks to the audio de-embedding feature, you can send audio to external speakers or sound systems for a unique setup tailored just for you.
Easy Setup and Control
Setting it up is a cinch with built-in EDID management & an IR remote control. It’s compact, making it easy to install anywhere. Front panel buttons give quick access to switching functions. User-friendly features make the Tono Pro X42 A8k great for both tech lovers and casual users alike.
Features
- HDMI 2.1 and HDCP 2.3 compliant
- Supports 40Gbps video bandwidth
- Supports video resolution up to 8K@60Hz 4:2:0 10-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
- VRR, FVA, and ALLM supported
- Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
- Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High
- Res, DTS-HD Master Audio, and DSD
- INPUT 1 port and OUT 1 port support ARC/eARC function
- Allows HD audio up to Dolby Atmos, DTS over TrueHD from any external HDMI source to any eARC/ARC sound system
- Supports audio de-embedding function (output through the optical and analog port)
- Built-in EDID DIP switch supports advanced EDID management
- 8K->4K, 8K/4K->2K downscaler support

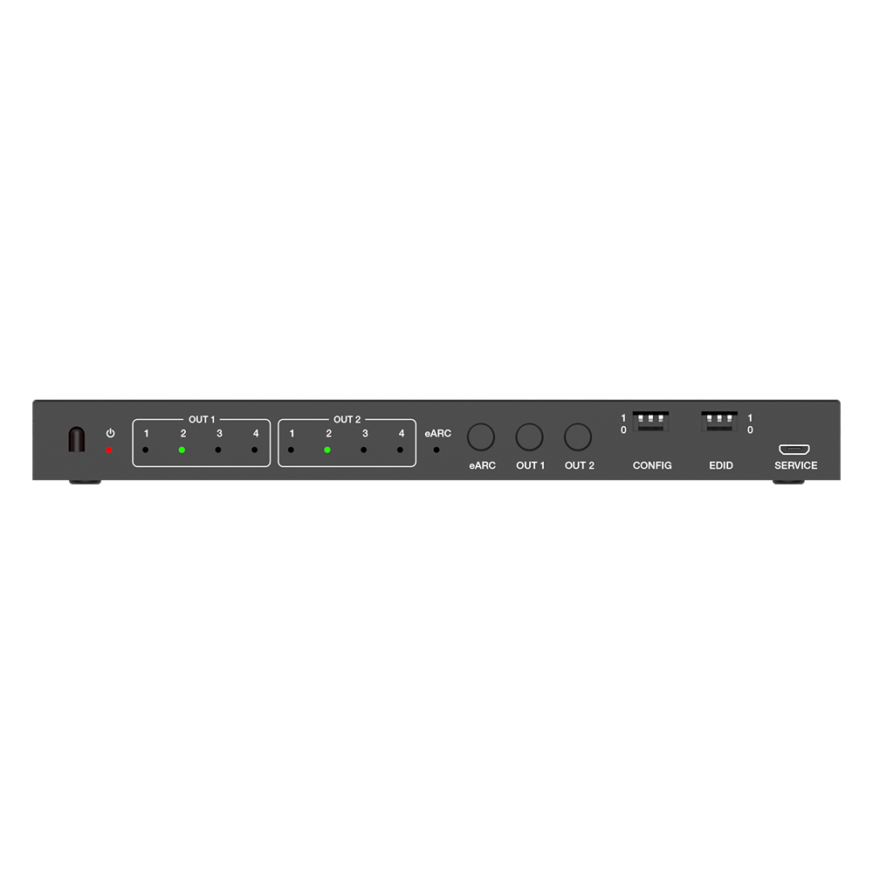

- Supports IR remote control and front panel button switching
- Built-in Equalizer, Retiming, and Driver
- Compact design for easy and flexible installation
